Gothic Shop Wall Unit
A three-bay gothic arcade, from SolidWorks model to finished interior.
Overview
A combined wall unit for a retail interior: three angled modules forming a gothic arcade with tracery, rosettes, mullions and glass shelving. We modeled the assembly part by part in SolidWorks and produced the full drawing set — elevations, sections, component details and finishes — for manufacture and installation.
- Software
- SolidWorks
- Drawing set
- 9 sheets
- Scale / size
- 1:5–1:20 / A2
- SolidWorks
- Production Documentation
- Shop Drawings
- Assembly Detailing
- Retail Fixture Engineering
01
Surface / Structure
02The drawing set
Elevations, sections,details and finishes.
03

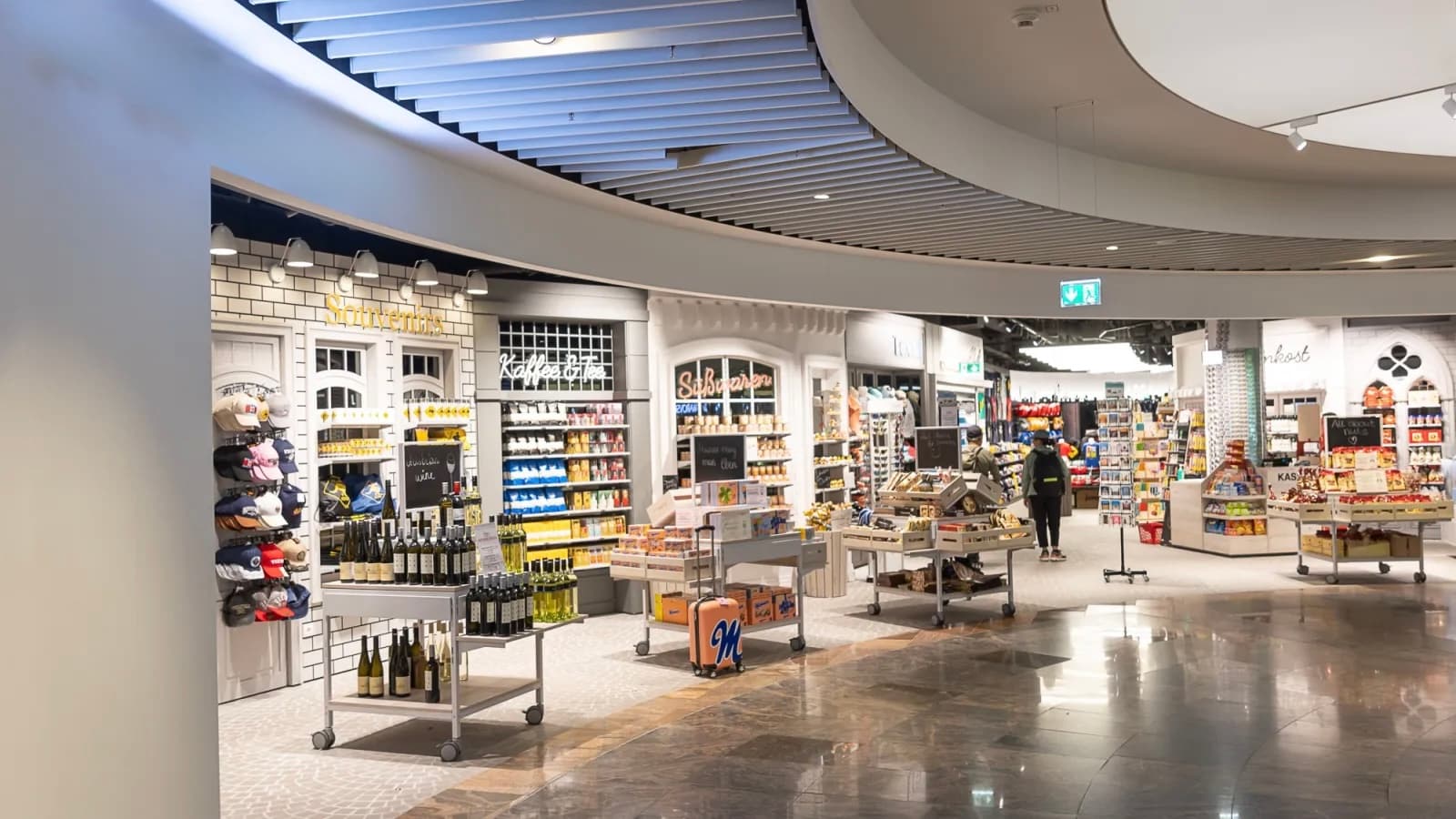

The finished interior
